MOTOTRBO Systems

No matter how large or small your enterprise, MOTOTRBO offers a wide range of systems specifically designed for your business – for the days ahead and the years beyond. You get the best of two-way radio with digital technology and enjoy integrated voice and data communication, increased capacity, enhanced features and exceptional voice quality, across the city and around the globe.

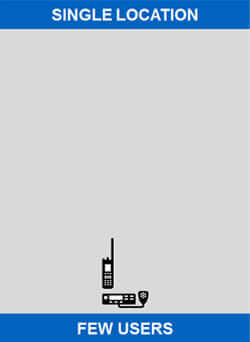

Direct Mode / Conventional

Direct Mode

Baseline Single Site Coverage And Capacity

A conventional system is a step up from basic radio-to-radio communications. Radios communicate via a high-power repeater, giving better coverage and more centralized control.

Basic Communications

Single Location / Few Users

  • Direct radio-to-radio communications
  • Limited range, basic feature-set
  • Good for very small operations
    • Radios must always be within range of each other
  • Only requires a single 12.5kHz channel
    • Additional channels can be provisioned
  • Supports MOTOTRBO Dual Capacity Direct Mode
    • Allows two independent calls on a single channel
  • Supports voice, data, text, telemetry
  • Supports Applications (Control station implementation only)
  • Individual channels can be configured for analog operation

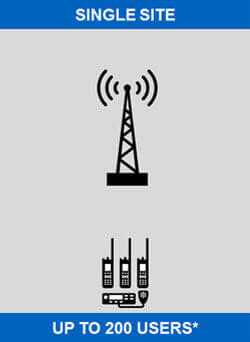

Baseline Coverage And Capacity

Single Site

Single Site / Up To 200 Users*

  • Radio communications through a repeater
  • Baseline range and feature-set
  • Ideal for small to medium operations:
    • Single building, small campus or factory
  • Repeater improves communication quality:
    • Improved error correction and interference management
    • Higher power and sensitivity
  • Supports Applications
    • Control station or MNIS repeater interface
  • Dynamic Mixed Mode allows integration of analog radios

*Maximum capacity, based on standardized call model

Learn more about Conventional Systems

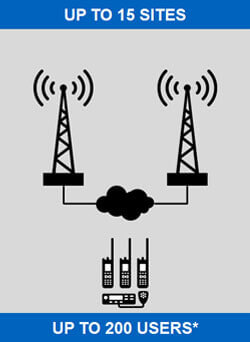

IP Site Connect

IP Site Connect

Cost-Effective Coverage For Multiple Sites

Use your IP network to extend the voice and data capabilities of MOTOTRBO by linking repeaters together. You can create a continuous network that covers employees at 15 geographically-dispersed locations. You can also link up to 15 repeaters to create wide area coverage or enhance coverage quality at a single site.

Up To 15 Sites / Up To 200 Users*

  • Coverage solution using multiple repeaters linked over IP
  • Ideal for:
    • Connecting multiple separate facilities
    • Providing good coverage in difficult terrain
    • Deploying a multi-band system
  • Users can communicate seamlessly across sites
  • Radios can roam between sites without changing channels
  • Offers similar capacity to single site conventional system
  • IPv4 interconnect, with optional VPN
  • RDAC tool allows remote management of repeaters

*Maximum capacity, based on standardized call model

Learn more about IP Site Connect

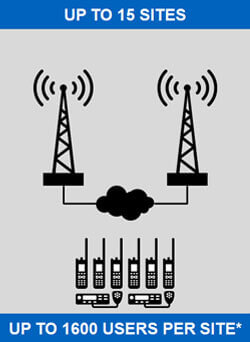

Capacity Plus

Capacity Plus

Cost-Effective Coverage And Capacity For Single And Multiple Sites

Expand the capacity and extend the coverage of MOTOTRBO with this entry-level digital trunking system. With multi-site Capacity Plus (formerly Linked Capacity Plus) you can connect up to 15 sites, each with up to 8 voice and data repeaters - plus up to 12 dedicated data repeaters.

Coverage And Capacity

Up To 15 Sites / Up To 1600 Users Per Site*

  • Single and multi-site capacity and coverage solution
  • Multi-site Capacity Plus was previously Linked Capacity Plus
  • Dynamic trunking, multiple sites linked over IP
  • Ideal for a large business with multiple facilities
  • High coverage and capacity:
    • Up to 15 sites
    • Up to 8 voice and data repeaters per site
    • Up to 12 additional data-only repeaters per site
  • Max 12 total repeaters per site (20 for single site)
  • No controller required, just linked repeaters
  • IPv4 interconnect, with optional VPN
  • Wireline integration option for WAVE 3000

*Maximum capacity, based on standardized call model

Learn more about Capacity Plus

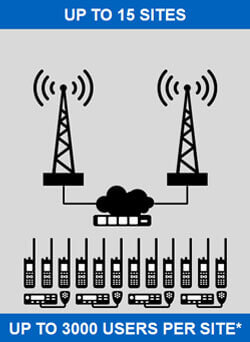

Capacity Max

Capacity Max
Coverage, Capacity And Control For Single And Multiple Sites

The next generation of trunking has arrived. MOTOTRBO Capacity Max blends innovation with Motorola’s extensive real-world experience of trunked radio systems to deliver a scalable communications solution that’s perfect for your business.

Capacity, Coverage And Control

Up To 2501 Sites / Up To 3000 Users Per Site*

  • Next-generation single and multi-site trunking solution
  • Full trunking, system linked over IP
    • Dedicated trunking channel on every site
    • Centralized control server
    • Centralized fault and performance management
    • Optimized routing for signaling and traffic
  • Ideal for a large business with multiple facilities
  • High coverage and capacity:
    • Up to 250 sites
    • Up to 15 voice and data repeaters per site
    • Up to 6 additional data-only repeaters per site
  • High security, high resiliency
  • IPv4 interconnect, with optional VPN
  • Compliant with DMR Tier III mode of operation

*Maximum capacity, based on standardized call model

Learn more about Capacity Max

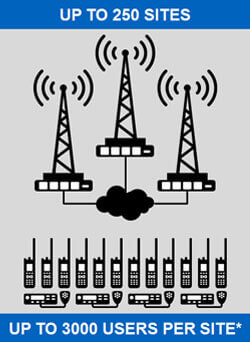

Connect Plus

Connect Plus

Exceptional Coverage For Single And Multiple Sites

Unify your entire enterprise with this scalable digital trunking system. Calls can be queued during busy times until an open channel is available, important users can be assigned priority status and a wireline console can be used for centralized dispatch.

Exceptional Coverage

Up To 250 Sites / Up To 3000 Users Per Site*

  • Single and multi-site trunking solution with exceptional scale
  • Flexible for many deployment options:
    • Single-site business with high security requirements
    • Very large multi-site business
  • Very high coverage and capacity:
    • Up to 250 sites
    • Up to 15 repeaters per site
    • Up to 420 repeaters, up to 770 traffic channels
  • Specialized security and access control features
  • Distributed architecture with controller per site
  • IPv4 interconnect, with optional VPN
  • Wireline integration option for WAVE 3000

*Maximum capacity, based on standardized call model

Learn more about Connect Plus
