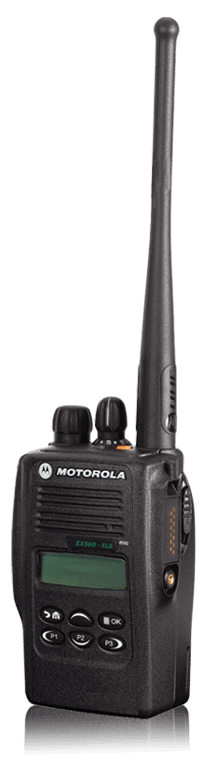

Motorola EX560XLS
Submersible, Compact and
Lightweight, Clear Audio
Rain, wind, snow and dust are every day challenges when you operate in all weathers and environments or in occupations where inhospitable conditions are a hazard to conventional communication devices. In such conditions, you need to consider personal and group safety first when carrying out and managing work functions. Reliable and efficient communication can help ensure that your team completes work tasks efficiently and safely.
For professionals who need to stay in contact
- Outdoor Security
- Civil Engineering
- Construction
- Utilities
- Petrochemical & Manufacturing
- Container Depots
- Forestry
- Quarrying
Designed for durability
The EX560•XLS two-way radio complies with the following standards:
- MIL-STD-810-C, D, E & F
- IP67 – sealing against dust and water intrusion –submersible in up to 1 meter of fresh water for up to 30 minutes
- FM approved as intrinsically safe
- Motorola Accelerated Life Testing (ALT) simulation of five years use
EX560XLS Portable Radio Features :
- Up to 160 Conventional Channels and/or 15 Trunked Zones
- Up to 99 Channels per Conventional Zone and up to 16 Talkgroups per LTR® Zone
- 12.5/20/25 kHz Switchable Channel Spacing Auto Key (LTR® Mode)
- Small Size and Light Weight
- 14 Character Alphanumeric Display
- Limited DTMF Keypad
- 2 Programmable Side Buttons
- 3 Programmable Front Buttons
- Programmable Emergency Button
- X-Pand™ Technology
- Internal VOX
- Priority or Dual Priority Scan (Conv. Only)
- Channel/Zone Selection Programmable on Top or Front of the radio
- Busy Channel Lockout
- Home Channel Revert (LTR® Operation Only)
- Clock and Alarm
- Adjustable Power Levels
- Battery Gauge and RSSI Indicator
- Quik Call II Encode/Decode (Conv. Only)
Applications
- Outdoor Security
- Civil Engineering
- Construction
- Utilities
- Petrochemical & Manufacturing
- Container Depots
- Forestry
- Quarrying
Models
The Motorola EX560XLS is available in the following VHF, UHF, and 800MHz models.
AAH38KDF9DU6_N EX560XLS 160 Channels, 15/16 Trunk Zones/Talkgroups, 1-5W, VHF (138-174 MHz)
AAH38RDF9DU6_N EX560XLS 160 Channels, 15/16 Trunk Zones/Talkgroups, 1-4W, UHF (403-470 MHz)
AAH38SDF9DU6_N EX560XLS 160 Channels, 15/16 Trunk Zones/Talkgroups, 1-4W, UHF (450-527 MHz)
All EX560XLS models include:
- Standard Battery (Li-ion, 1400 mAh, 7.5V - PMNN4073_A)
- Standard Charger (120V Single Unit Rapid Rate Charger - AAHTN3000)
- Standard Antenna (VHF option must be ordered / UHF Band 1 PMAE4022_A,
UHF Band 2 PMAE4025_A)
- Carry Holster (JMZN4023)
- Three Year Warranty
- Operating Instruction Manual
